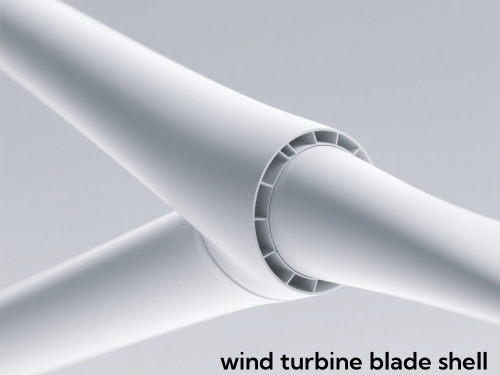

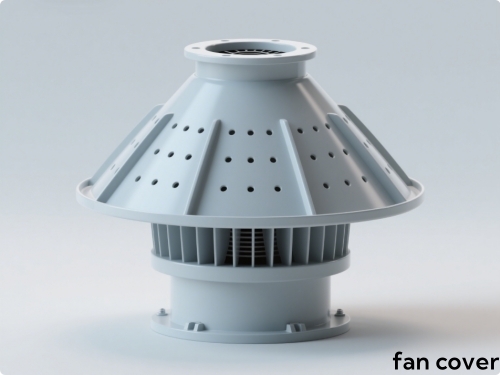

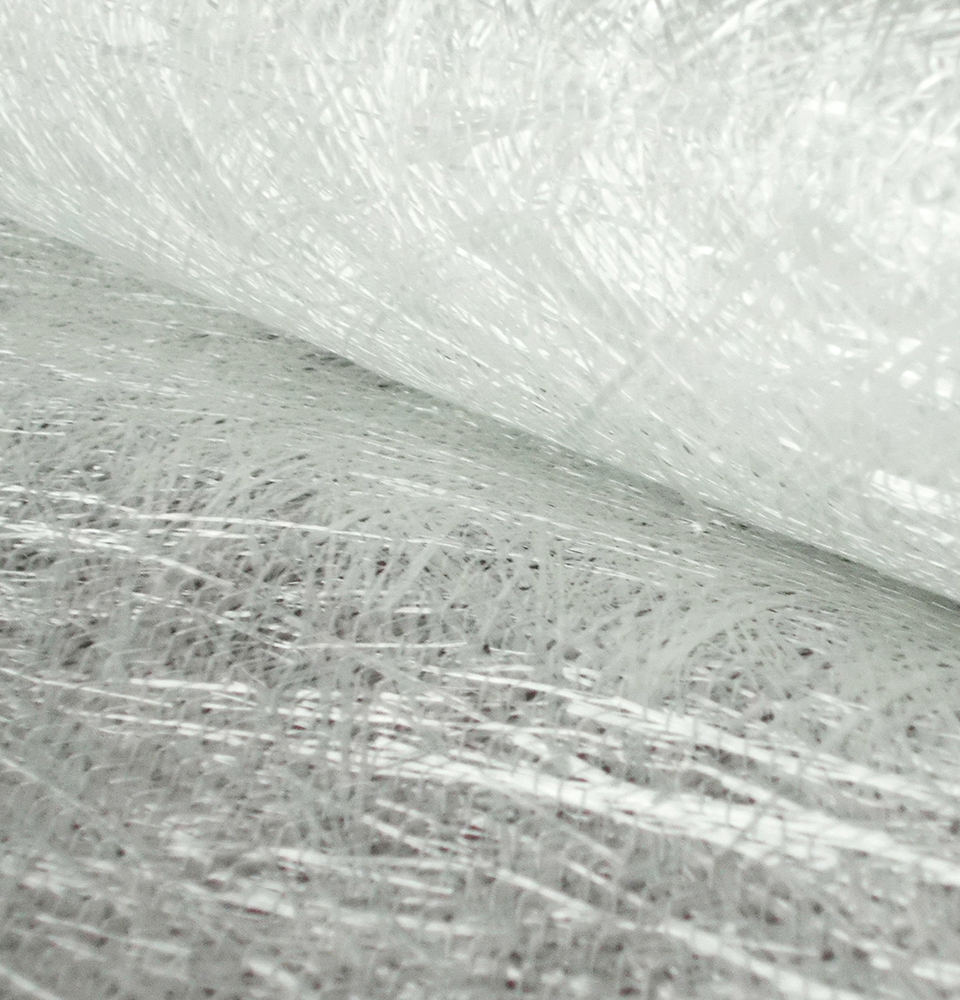

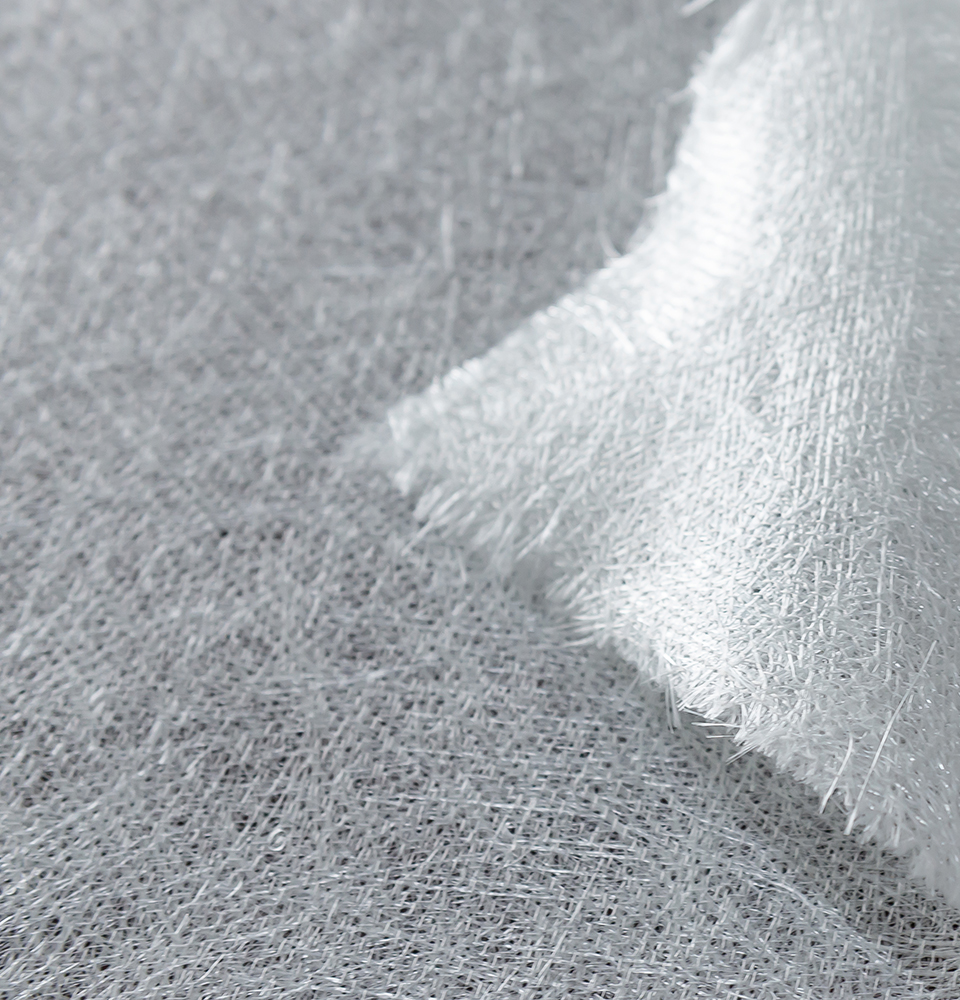

Glass Fiber Stitched Mat is made of randomly oriented chopped glass fiber strands stitched together with polyester yarn, ensuring improved mat integrity, handling, and ease of processing. It provides excellent dimensional stability, durability, and resin compatibility. Glass Fiber Stitched Mat is ideal for producing FRP pipes, storage tanks, panels, and other structural composite components.
Swipe or wait — images change automatically.
EMK (E-glass stitched Mat with Knitting yarn)
| Specification | Total weight (gsm) | Deviation(%) | CSM(gsm) | Stitching Yarn(gsm) |
| EMK200 | 210 | ±7 | 200 | 10 |
| EMK300 | 310 | ±7 | 300 | 10 |
| EMK380 | 390 | ±7 | 380 | 10 |
| EMK450 | 460 | ±7 | 450 | 10 |
| EMK900 | 910 | ±7 | 900 | 10 |
One roll is wrapped in plastic film and then placed into a carton or a large carton.
Normally, P4 (4 big rolls) or P7 (4 big rolls + 3 small rolls) or 6, 9, or 12 small rolls are packed per pallet horizontally/vertically. It can be customized based on the loading method.
Fiberglass products should be stocked in a dry, cool, and waterproof place. The best condition is with a temperature between 15-35℃, with a relative humidity between 30%-65%. Please keep the product in its original packaging before use, avoiding moisture.
Weitong currently operates over 30 fiberglass weaving machines for producing woven roving, along with various other equipment, including stitched mat machines, multiaxial tricot machines, PP core mat machines, and carding machines. Our annual production capacity reaches 3,000 tons of woven roving, 5,000 tons of stitched mat, 10,000 tons of multiaxial fabrics, 8,000 tons of combo mat, and 2,000 tons of RTM core mat.
Our team has already attended the China(Shanghai) International Composite Exhibition for 9 years, and JEC France, Composites Europe, and JEC Asia several times in France, Germany and Korea.
Backed by a highly skilled team of professional technicians, we have strong capabilities in developing and customizing specialized products to meet diverse customer requirements.
