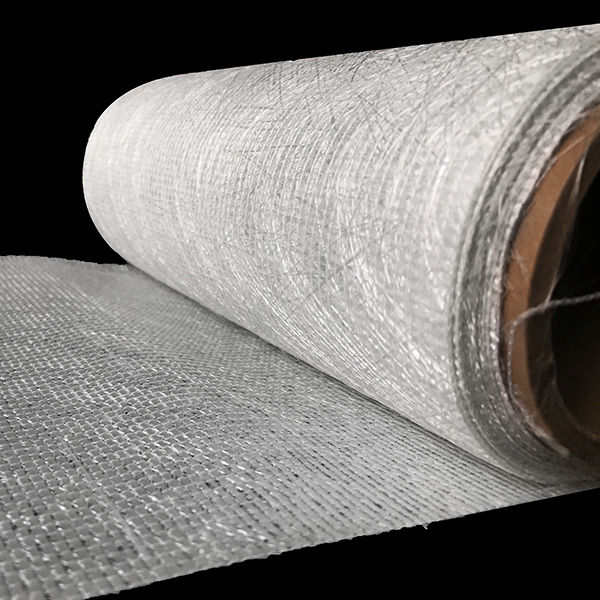

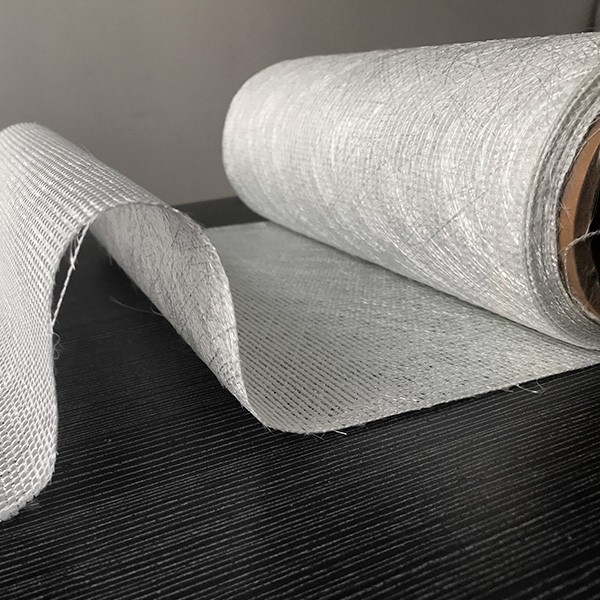

Unidirectional(ud) Fiberglass Multiaxial Fabrics

Fiberglass Multiaxial Fabrics

Multiaxial fabrics is a kind of multi-axis and multi-layered reinforcements. layer count, orientation, weight and fiber content of the layers vary based on product line and application via polyester yarn. fabrics can be produced using multiple axis(0’, 90°, +45°, -45°), or combined with chopped mat layer.Mainly used for Pultrusion,Hand lay-up,Filament Winding and RTM process,applied to wind energy,marine/ship building, recreation/leisure products, automotive, aerospace &defense etc.

Product Details

PROPERTIES

1.Increased strength, reduced product weight and better surface finish；

2.Orientated unidirectional layers are structurally more efficient；

3.Quicker to wet-out than woven fabrics;

4.Available in very heavy weights allowing faster deposition rates；

5.Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out；

SPECIFICATIONS

Specification	Total weight (gsm)	0 degree (gsm)	90 degree (gsm)	45 degree (gsm)	-45 degree (gsm)	CSM （gsm）	Stitching Yarn（gsm）
UDL550	550	420	120				10
UDTM200/225	435		200			225	10
EBX400	407			200	200		7
EBX600	609			301	301		7
BXM600/225	832			300	300	225	7
LTM600/300	910	336	264			300	10
LTM800/300	1110	420	380			300	10
LTM1200/300	1510	672	528			300	10
TLX1200	1214	567		320	320		7
QX800	808	283	118	200	200		7
QX1200	1207	576	124	250	250		7
