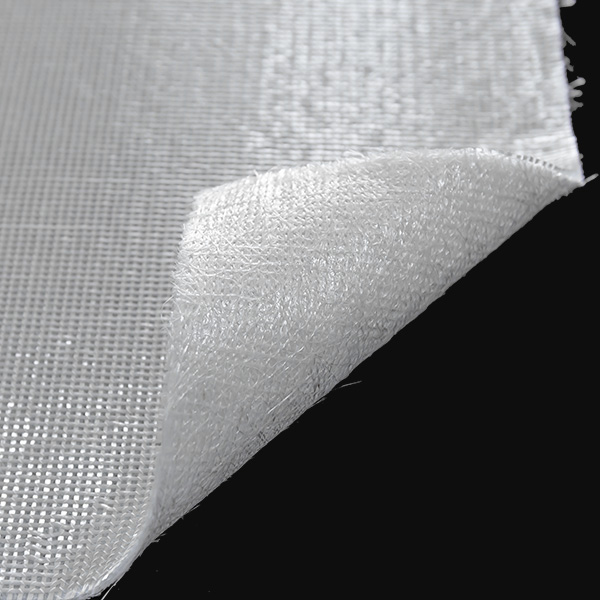

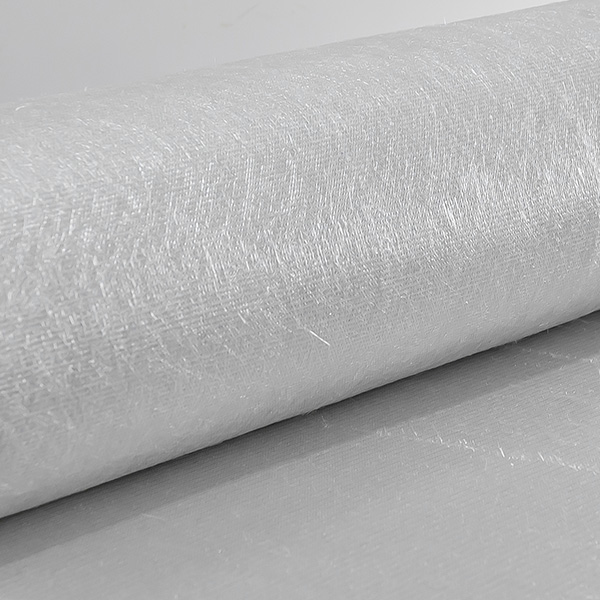

Fiberglass LTNM Infusion Core Mat

Fiberglass Core Mat

Core Mat is a new material,consisting of a synthetic non-woven core,sandwiched between two layers of chopped glass fibers or one layer of chopped glass fibers and the other one layer of multiaxial fabric/woven roving.Mainly used for RTM,Vacuum Forming,Molding,Injection Molding and SRIM Molding process,applied to FRP boat,automobile,aeroplane,panel,etc.

Product Details

PROPERTIES

1. Sandwich construction can increase the strength and thickness of the product;

2. High permeability of the synthetic core,good wet-out in resins,fast solidifying speed.

3. High mechanical performance,easy to operate;

4. Easy to form in angles and more complex shapes；

5. Core resilience and compressibility,to adapt to the different thickness of parts.

6. Lack of chemical binder for a good impregnation of the reinforcement.

SPECIFICATIONS

Specification	Total weight (gsm)	Deviation (%)	0 degree (gsm)	90 degree (gsm)	CSM (gsm)	Core (gsm)	CSM (gsm)	Stitching Yarn (gsm)
CF150/130/150	440	±7	-	-	150	130	150	10
CF300/180/300	790	±7	-	-	300	180	300	10
CF450/180/450	1090	±7	-	-	450	180	450	10
CF600/250/600	1460	±7	-	-	600	250	600	10
CF1100/200/1100	2410	±7	-	-	1100	200	1100	10
300/XT1/300	710	±7	-		300	100	300	10
450/XT1/450	1010	±7	-	-	450	100	450	10
600/XT2/600	1410	±7	-	-	600	200	600	10
LTNM600/180/300	1090	±7	336	264		180	300	10
LTNM600/180/600	1390	±7	336	264		180	600	10

Remark: XT1 refers to one layer of flow mesh,XT2 refers to 2 layers of flow mesh.Besides the above regular specifications, more layers (4-5 layers) and other core materials can be combined according to the customer’s request. Such as woven roving/multiaxial fabrics+ core + chopped layer(single/ double sides).
